Aramid Fiber Kevlar® Wiping Pad PRODUCTS

Manufacturers Of Aramid Fiber Kevlar® Wiping Pad

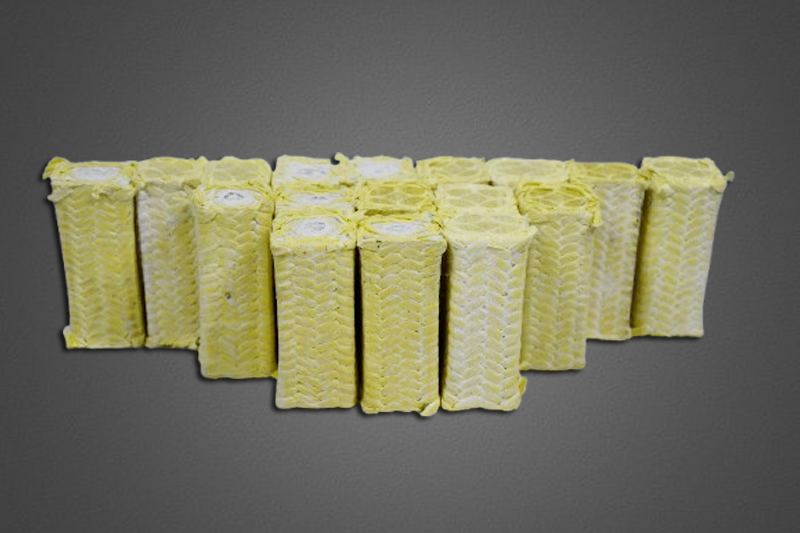

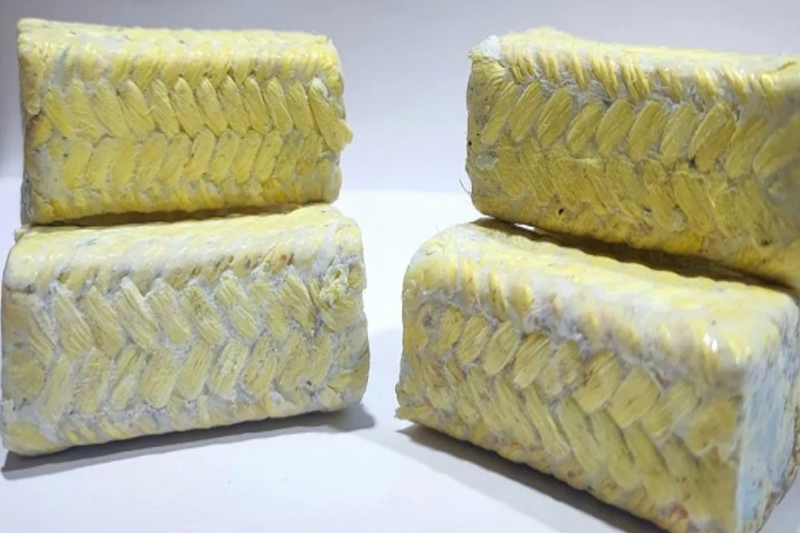

MARSHALL Aramid Fiber Kevlar® Wiping Pad is made from High Tenacity and High Temperature resistant Kevlar® yarns Impregnation With PTFE PFOA free and special lubricant.

MARSHALL Aramid Fiber Kevlar® Wiping Pad is made with pure continuous para-aramid yarns for the whole item (both core and outside braiding) And then lubricated with PTFE.

MARSHALL Kevlar® Wiping Pad is made pure continuous para-aramid yarns on the corners and E-glass filament yarns as the core, and then lubricated with PTFE.

MARSHALL Kevlar® Wiping Pad is specifically engineered to provide a commercial grade wire coating by effectively eliminating excess zinc during the galvanization process.

This system comprises a clamping mechanism that exerts pressure on two rectangular pads, through which the wire is threaded.

The wire diameters typically range from 0.8mm to 8.0mm, encomprassing both high and low carbon wire, With coating weight typically falling between 50g/m2 and 120g/m2.

Characteristics

• Long life
• Lubricated for low friction
• High melting point
• Constant wiping effect
• Not flammable
• Asbestos free
• Dimensions at customer request

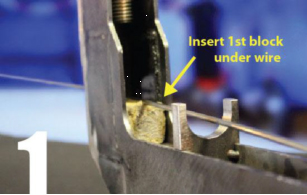

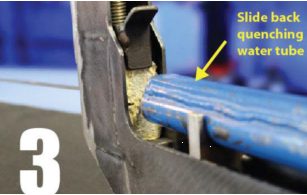

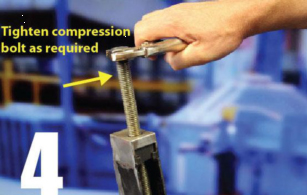

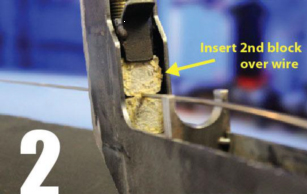

Steps Installation

Technical Data:

Temperature Range	500*C (932*F)
Wiping Line Speed (Max)	150m/min (500 fpm)
pH	3~11
Density	1.4~1.9g/cm3
Size Tolerance	±0.80mm (0.032”)
Length Tolerance	±3%
